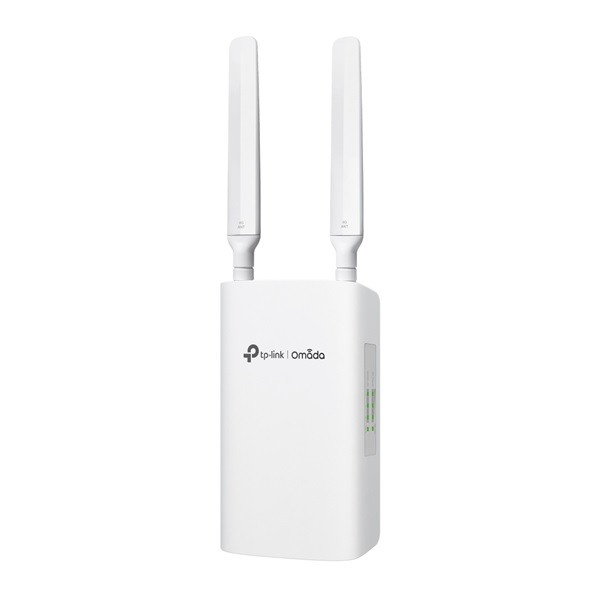

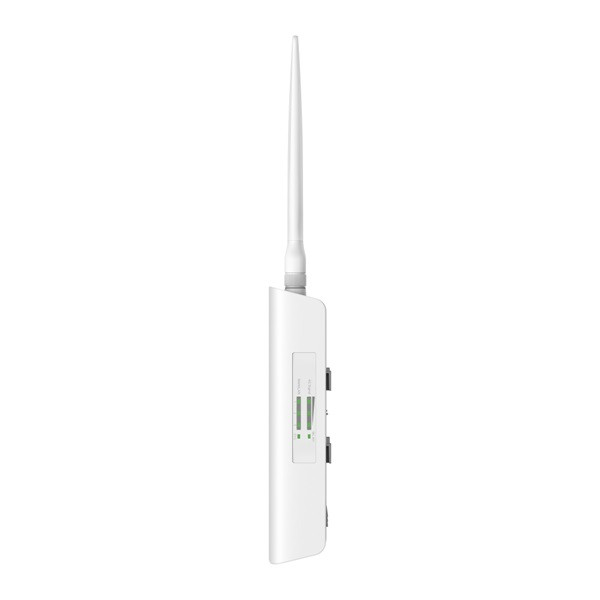

TP-LINK 3G/4G+ Omada AX3000 VPN Router 3xWAN/LAN(1000Mbps) Kültéri/Beltéri, ER703WP-4G-OUTDOOR
TP-LINK 3G/4G+ Omada AX3000 VPN Router 3xWAN/LAN(1000Mbps) Kültéri/Beltéri, ER703WP-4G-OUTDOOR
TP-LINK 3G/4G+ Omada AX3000 VPN Router 3xWAN/LAN(1000Mbps) Kültéri/Beltéri, ER703WP-4G-OUTDOOR
TP-LINK 3G/4G+ Omada AX3000 VPN Router 3xWAN/LAN(1000Mbps) Kültéri/Beltéri, ER703WP-4G-OUTDOOR

TP-LINK 3G/4G+ Omada AX3000 VPN Router 3xWAN/LAN(1000Mbps) Kültéri/Beltéri, ER703WP-4G-OUTDOOR

Cikkszám:
C360907
TP-LINK 3G/4G+ Omada AX3000 VPN Router 3xWAN/LAN(1000Mbps) Kültéri/Beltéri, ER703WP-4G-OUTDOOR
175 900 Ft
Raktáron 2 db
Hasonló termékek
Részletek
4G
Network Type LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9
00/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type 1× Nano SIM Card
Frequency • Downlink: 300 Mbps;
• Uplink: 50 Mbps
SECURITY
DPI Application control via DPI / Updated app library
Access Control Source/Destination IP Based Access Control
Filtering • Web Group Filtering
• URL Filtering
• Web Security
ARP Inspection • Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES

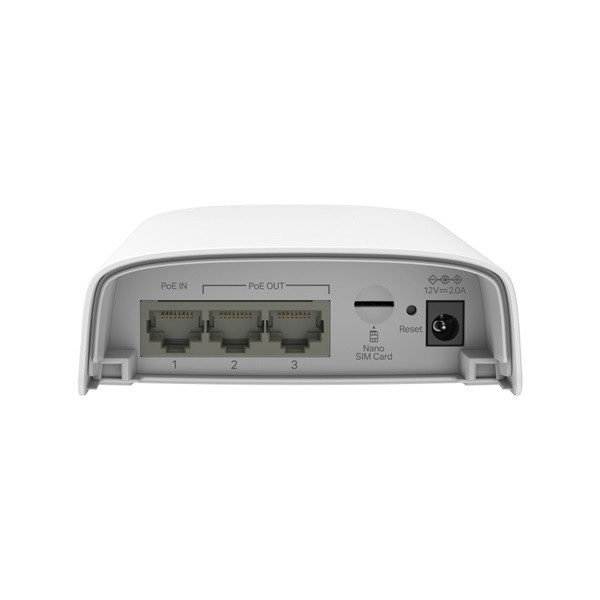

Interface • 3 Gigabit WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 802.3at/bt PoE; 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash 256 MB NAND
DRAM 512 MB DDR4
LED 4G Signal, WLAN, WAN/LAN, SYS
Dimensions ( W x D x H ) 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
Antenna • Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas

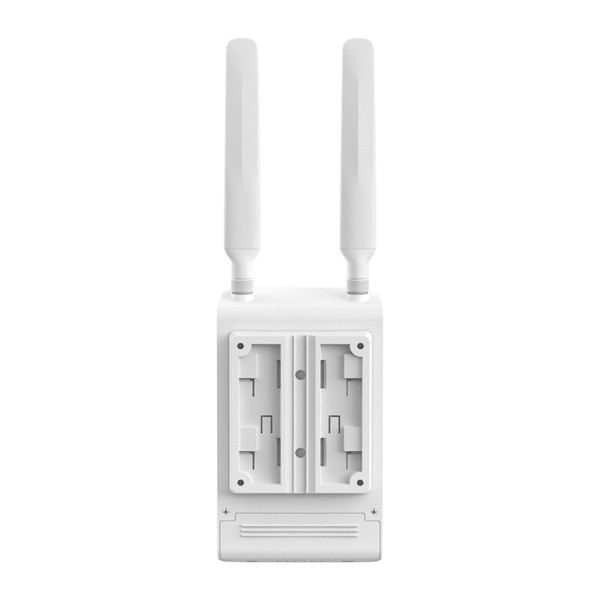

Mounting Pole/Wall-Mounting
Max Power Consumption POE:62.9W max @ 220V/50Hz 25?
DC: 16.6W max @ 220V/50Hz 25?
PERFORMANCE
DPI Throughput • TCP: 1131 Mbps
• UDP: 974 Mbps
GRE • Unencrypted: 450.3Mbps
• Encrypted: 277.6Mbps
WireGuard VPN 462.8Mbps
Concurrent Session 120,000
New Sessions /Second 3,800
NAT (Static IP) 945.9Mbps / 950.2Mbps
NAT(DHCP) 947.3Mbps / 949.4Mbps
NAT(PPPoE) 916.9Mbps / 946.3Mbps
NAT (L2TP) 878.9Mbps / 778.9Mbps
NAT (PPTP) 852.2Mbps / 775.9Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 568.3Mbps
• ESP-SHA256-AES256: 559.8Mbps
• ESP-SHA384-AES256: 565.6Mbps
• ESP-SHA512-AES256: 550.0 Mbps
OpenVPN 85.1Mbps
L2TP VPN Throughput • Unencrypted: 858.7Mbps
• Encrypted: 467.0Mbps
PPTP VPN Throughput • Unencrypted: 876.2Mbps
• Encrypted: 182.6Mbps
SSL VPN Throughput 86.6Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate 81275 pps / 81275 pps
WIRELESS FEATURES
Advanced Functions • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
Guest Network Support
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
SMS Receive / Send SMS
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
• RIP
• OSPF
Bandwidth Control IP-Based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-Based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN • 20 Tunnels
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP
MANAGEMENT
Omada App Yes.
Centralized Management • Omada Cloud Essentials
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER703WP-4G-Outdoor
• Mounting Kits
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 90% non-condensing
Adatok
Gyártó:
TP-LINK
Gyártói cikkszám:
ER703WP-4G-OUTDOOR
EAN:
8885020626858
Garancia:
60 hónap
EAN:
8885020626858
Gyártó:
TP-LINK
Szállítási idő:
2-4 munkanap
Frekvencia:
2.4 GHz és 5 GHz
Portok száma:
3
Tömeg:
680 g/db
